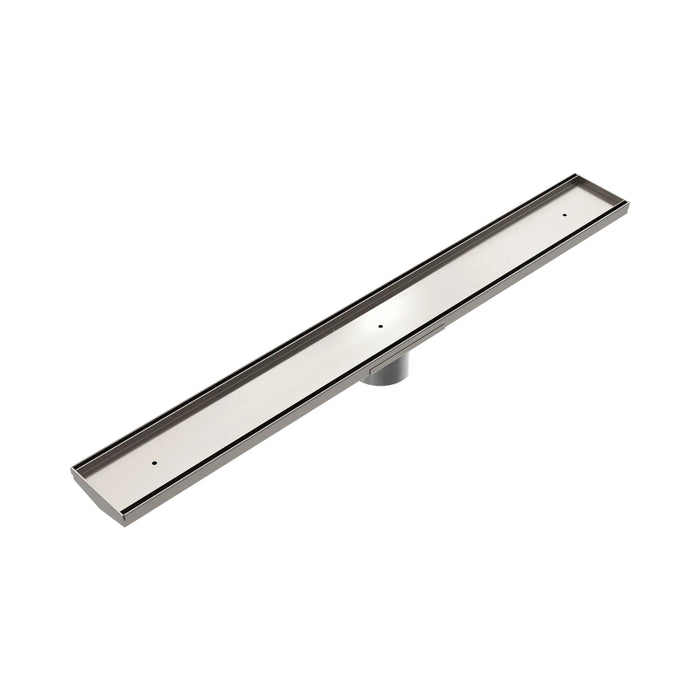

Nero Tile Insert V Channel 900x106mm Floor Grate 90mm Outlet Brushed Nickel

The Nero Tile Insert V Channel Floor Grate in brushed nickel is a streamlined drainage solution designed to integrate neatly with tiled surfaces. Featuring a tile insert design and V channel form, it allows your chosen tile to sit within the grate for a cohesive look, while the brushed nickel finish offers a refined, modern appearance. Sized at 900 x 106mm with a 90mm outlet and supplied with a hole saw, it provides a considered option for coordinating with contemporary bathroom fittings and layouts.

• Fits 100mm puddle flange for easy integration
• Suitable for tiles with a thickness of less than 10mm
• Durable 304 stainless steel construction ensures long-lasting performance

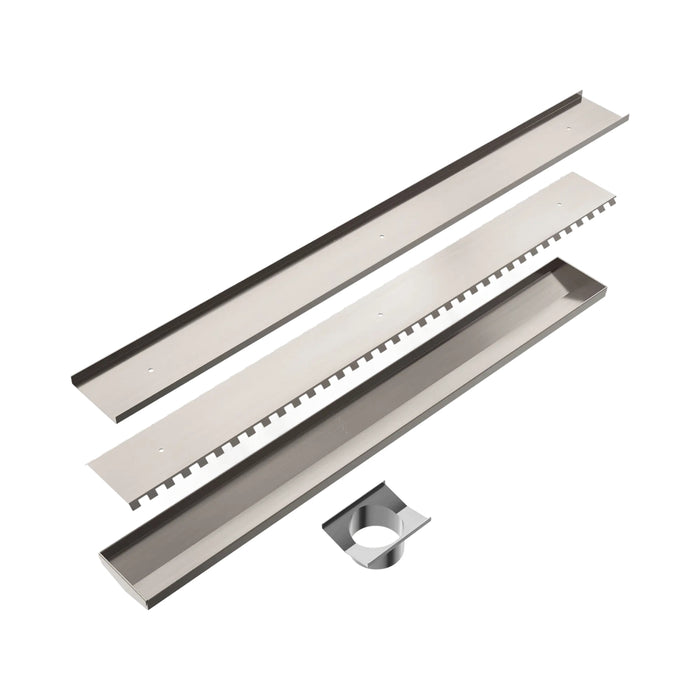

• Separate waste outlet and grate design provides greater installation flexibility
• V-channel profile enhances water flow speed and drainage efficiency
• Available in 5 premium finishes to match various bathroom styles.
• Note: Outlet and grate are packed separately. Holesaw not included. You can add a hole saw to your order from the drop down box if required
• Supported by a 10 year warranty

Specifications

Watermark certification: All Nero Floor grates are watermark certified
Construction material: 304 Stainless Steel
Finish/coating: PVD

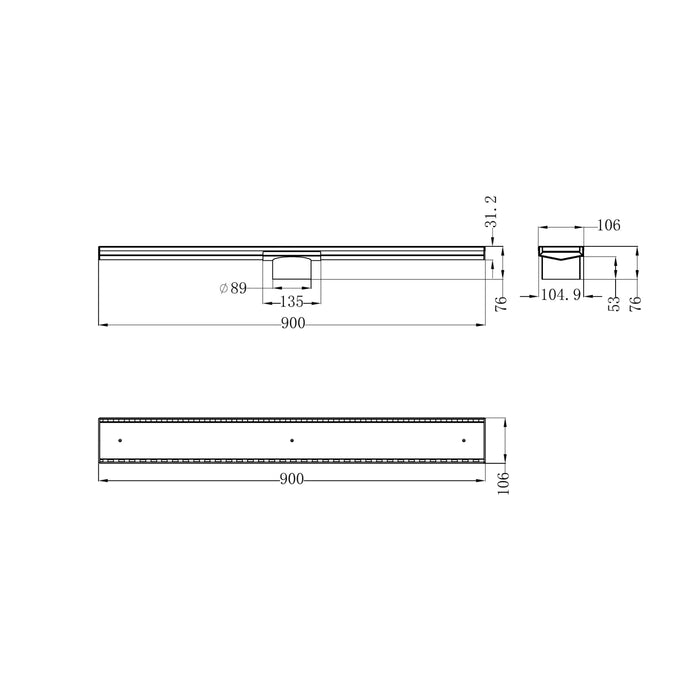

Overall length: 900mm
Overall width: 106mm
Required Hole Size: 90mm
Warranty: 10 Years

What's In The Box

1 x Floor Grate, 1x Outlet, Installation Instructions

Downloads

Download the specification sheet below:

Nero Tile Insert V Channel 900x106mm Floor Grate 90mm Outlet Brushed Nickel
