Iver Sarlat Lever Oval Backplate Passage Kit Satin Nickel

The Sarlat Lever Oval Backplate Passage Kit features a lever design with an oval backplate for a considered and coordinated look. Supplied as a passage kit with all components required for door function, it is designed for bedrooms, living rooms, hall doors, and laundries where locking is not required. It provides a complete door hardware solution while offering a style that works across a range of interiors.

• Includes all components required for installation, helping simplify setup and reduce the need for additional parts.
• Featuring 85mm centre-to-centre spacing and compatibility with both Euro and privacy locks, this design fits standard door preparations for a straightforward, hassle-free install.
• Passage function allows free operation from both sides for smooth everyday access between rooms.
• Tie bolts supplied with the kit help provide secure handle fixing for a more stable installation.
• Fire rated for up to 2 hours to support projects requiring compliant door hardware installations.
• Available in 5 colours, 3 backplate shapes and 3 types. View the full collection here.
• 10 year mechanical warranty

Key Installation Information
The screws provided with Iver products are made from solid brass. This allows finishes to be matched as closely as possible and prevents the possibility of screws rusting in coastal areas. Please note that screws require pre-drilling. Please take extra care when fitting.

Specifications

Construction material: Brass
Finish/coating: Lacquered
Door Thickness: 35-60mm

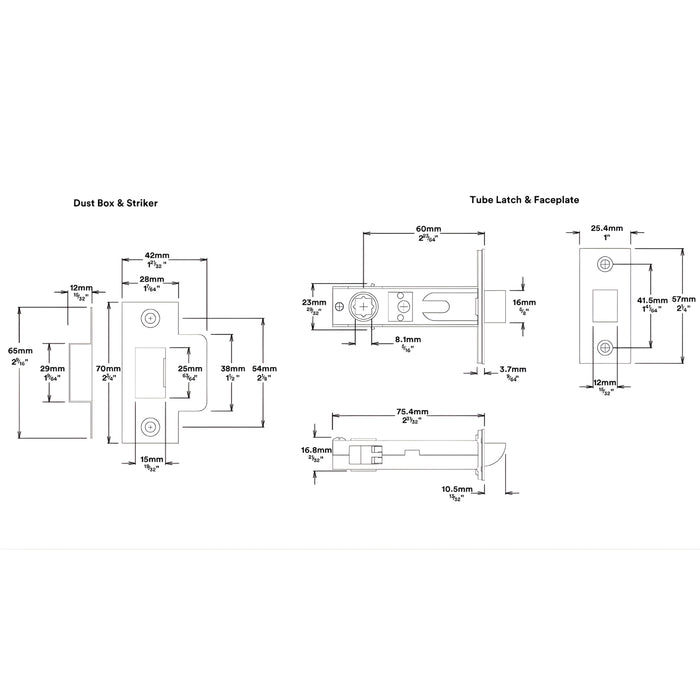

Latch Type: Tubular
Lock Type: Latch
Backset: 60mm

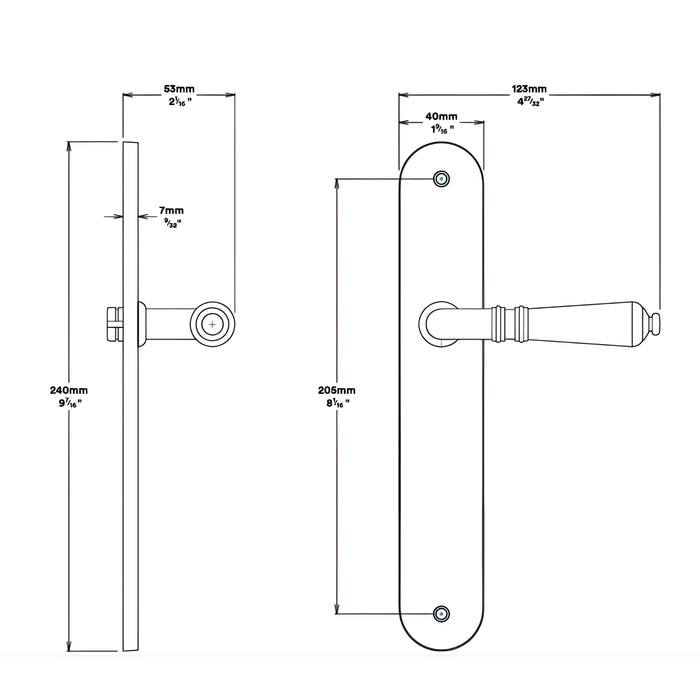

Projection: 53mm
Length: 240mm
Width: 40mm
Fixing Centres: 205mm
Warranty: 10 Years

Spec Sheet

Download the specification sheet below:

Iver Sarlat Lever Oval Backplate Passage Kit Satin Nickel

What's In The Box

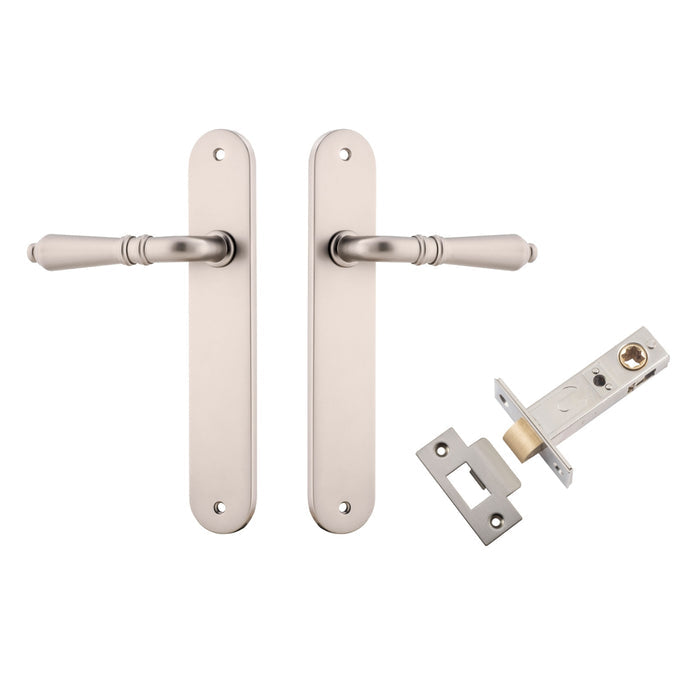

1 x Pair of door lever, fixing kit, installation instructions
